ANR 698-2700 MHz Cell-Max Directional MIMO Antenna

ANR 698-2700 MHz Cell-Max Directional MIMO Antenna

(No reviews yet) Write a Review
$313.00
Brand
SKU:
CMAX-DMF-CPUSEi
Weight:
3.00 LBS
Shipping:
Calculated at Checkout
Adding to cart… The item has been added

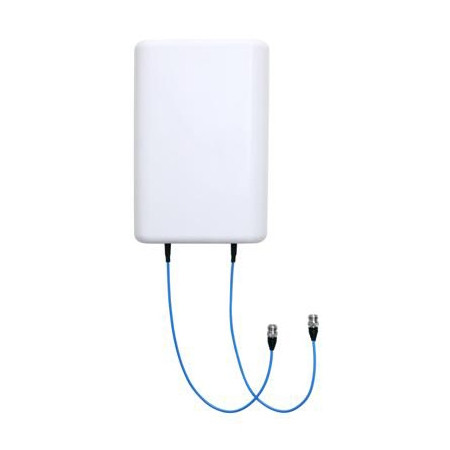

The CommScope CMAX-DMF-CPUSEi 698-960 MHz / 1710-2700 MHz Cell-Max Directional Multiband MIMO In-building Antenna. The antenna features two 17.7" 670-141SXE, plenum rated pigtail cables with N Female connectors. A mounting bracket is included.

Specific Frequency 698-960 MHz / 1710-2700 MHz
Gain dBi 6.5 dBi / 7.0 dBi / 8.0 dBi
PIM Minimum -153 dBc
Polarization +/- 45 Degrees
Vertical Beamwidth 75.0 deg / 60.0 deg / 65.0 deg
Maximum VSWR 1.8:1 / 1.8:1 / 1.7:1
Maximum Power 100 W
RF Connectors N Female
Jumper Included Yes
Color White
Antenna Mounting Style Wall
Mfg. Warranty 1 Year
