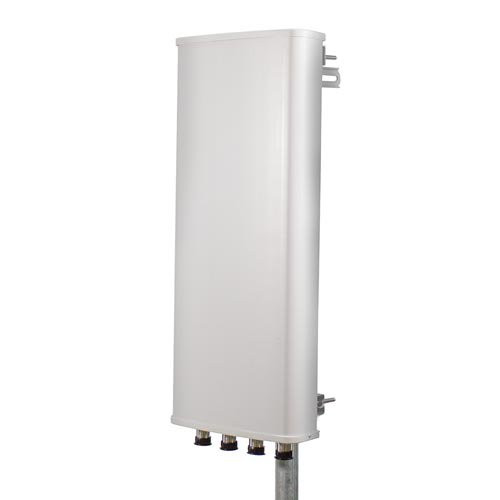

3GHz 18 dBi Dual Slant Quad Port 65 Degree Sector Antenna, 4x 7/16 DIN Female


Request a quote below for our best pricing.

E-mail us  |  (866) 943-4737 or (570) 718-1220.
28.00 LBS
Calculated at checkout

Product Description

Frequency Range: 3.3 GHz to 3.8 GHz
Polarization Type: 45 Deg. Slant
Gain: 18 dBi
Vertical Beamwidth:
Horizontal Beamwidth: 65°
Electrical Downtilt: 3.5°
F/B Ratio: 35 dB
VSWR: 1.7:1
Cross Polar Ratio: 25 dB
Port Isolation: 25 dB
Connector Type: 4 x 7/16 DIN Female
** These antennas require 7/16 DIN Cables **

The KP-3SX4-65 is a 4-port 18 dBi sector antenna designed for use in 3 GHz WISP networks. The unique design of these 3 GHz sector antennas minimizes interference by utilizing a 65-degree gain pattern and ±45-degree slant dual polarization scheme.

The KP-3SX4-65 sector antenna is designed to provide high-gain and maximum coverage and feature improved front-to-back and pattern roll off that allows for higher spectral efficiency. This sector antenna utilizes four 7/16 DIN connectors and operates in the popular frequency range of 3.3 GHz to 3.8 GHz and delivers VSWR of 1.7:1. Cables not included. To purchase compatible 7/16 DIN to Type-N cables for this antenna.
