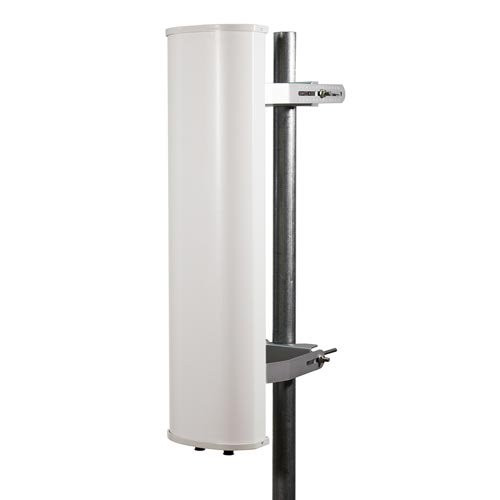

3GHz 18 dBi Dual Slant 65 Degree Sector Antenna
(No reviews yet)
Write a Review
Write a Review
KP Performance
3GHz 18 dBi Dual Slant 65 Degree Sector Antenna
$305.99
- Brand
- KP Performance
- SKU:
- KP-3DP65S-45
- Weight:
- 28.00 LBS
- Shipping:
- Calculated at Checkout
| Frequency Range: | 3.3 GHz to 3.8 GHz |
| Polarization Type: | 45 Deg. Slant |
| Gain: | 18 dBi |
| Vertical Beamwidth: | 6.5° |
| Horizontal Beamwidth: | 65° |
| Electrical Downtilt: | 3.5° |
| F/B Ratio: | 35 dB |
| VSWR: | 1.5:1 |
| Cross Polar Ratio: | 25 dB |
| Port Isolation: | 25 dB |
| Connector Type: | 2 x Type N Female |
The KP Performance KP-3DP65S-45 is a 3 GHz ±45 Degree Slant, Dual Pol 18 dBi, 65 Degree Sector Antenna with two type-N connectors. This 3 GHz sector antenna is specifically designed for customers deploying 45 degree slant radios.
These sector antennas come with heavy duty mounting brackets with an easy-attach system and stainless steel hardware. These 3 GHz sectors have an exceptional F/B ratio and designed for channel reusability on towers between sectors.
Features
- Functional mounting bracket.
- Stainless steel hardware.
- Cost effective Antenna solution with radio casing attached
