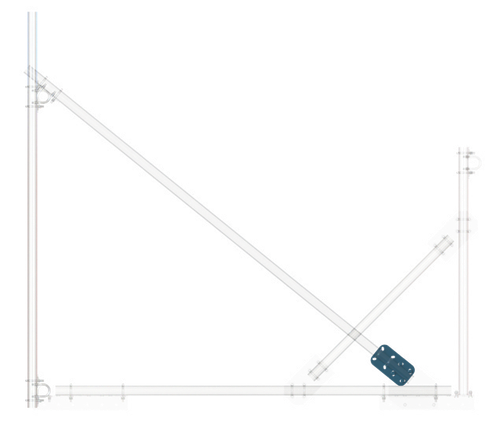

Sabre ARMUR Ballast Tray Gusset Adapter Plate Kit - +/-10 Degrees
(No reviews yet)
Write a Review
Write a Review
Sabre Communications
Sabre ARMUR Ballast Tray Gusset Adapter Plate Kit - +/-10 Degrees
Request a quote
- Brand
- Sabre Communications
- SKU:
- C10223052-238-278
- Weight:
- 0.00 LBS
- Series / application:
- ARMUR rooftop mounting system
- Compatible diagonal pipe OD:
- 2-3/8 in. or 2-7/8 in.
- Adjustment:
- +/-10 degrees
- Adapter plates per kit:
- 2
Adjust the gusset-to-diagonal-pipe connection using this pair of adapter plates. The kit supports 2-3/8 in. and 2-7/8 in. pipe and includes the adapter mounting bolts.
Specifications
| Manufacturer | Sabre Industries |
|---|---|
| Series / application | ARMUR rooftop mounting system |
| Part number | C10223052-238-278 |
| Compatible diagonal pipe OD | 2-3/8 in. or 2-7/8 in. |
| Adjustment | +/-10 degrees |
| Adapter plates per kit | 2 |
Included components
- CS04096 - Gusset-to-pipe adapter plate, quantity 2
- C40026004 - 1/2 in.-13 x 1-3/4 in. A325 HDG bolt assembly, quantity 8
Use the U-bolts supplied with the ballast tray gussets.
Sabre ARMUR product brochure (printed page 10).
