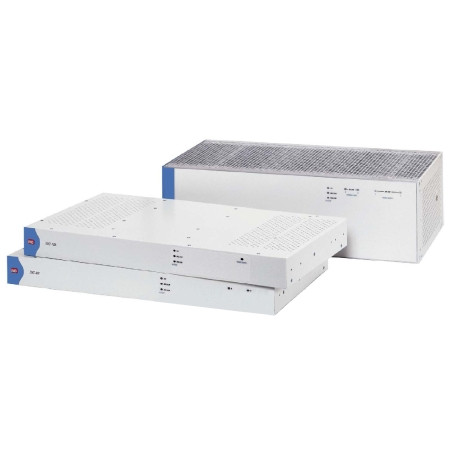

RAD 30 CHANNEL DACS W/ CL.3/UTP
- Brand
- RAD
- SKU:
- DXC-30-3/UTP/AC
- Weight:
- 17.00 LBS
- Shipping:
- Calculated at Checkout
The DXC-30 model DXC-30-3/UTP/AC Multiservice Access Node is a 3U-high chassis with 15 I/O slots, one AC power supply, and one common logic module.
DXC-8R/10A/30 are the modular multiservice access nodes provide non-blocking cross-connection of up to 960 timeslots, over up to 120 ports. Plug-in interface modules enable n × 64/56 kbps, E1, T1, E3, T3, or STM-1 transmission over copper, fiber, or SHDSL lines. A DIM module that provides inverse multiplexing capabilities of up to 15.7 Mbps is also available.
Typical applications for the DXC-30 include; Local loop access with traffic grooming for redirecting voice and data to different trunks, Voice and data transmission over PDH wireless devices, Concentrating multiple fractional E1/T1 lines from a cellular base transceiver station (BTS) onto a full E1/T1 link to the mobile switch center (MSC), and Inverse multiplexing of a single higher-rate logical channel over as many as 8 E1/T1 links.
Narrative | DXC-30 is a modular multiservice access node providing non-blocking cross-connection of up to 960 timeslots, over up to 120 ports. Plug-in interface modules enable n × 64/56 kbps, E1, T1, E3, T3, or STM-1 transmission over copper, fiber, or SHDSL lines. A DIM module that provides inverse multiplexing capabilities of up to 15.7 Mbps is also available. |
Description | The DXC-30-3/UTP/AC Multiservice Access Node is a 3U-high chassis with 3 Ethernet UTP orts, one AC power supply, and one common logic module. |
Mfg. Warranty | 5 Years |
