Matsing MS-4H60 4 Beams : H Band (1695 – 2690 MHz) 2×2 MIMO

Matsing MS-4H60 4 Beams : H Band (1695 – 2690 MHz) 2×2 MIMO

(No reviews yet) Write a Review

Add to Quote

SKU:
MS-4H60
Weight:
529.00 LBS

Description

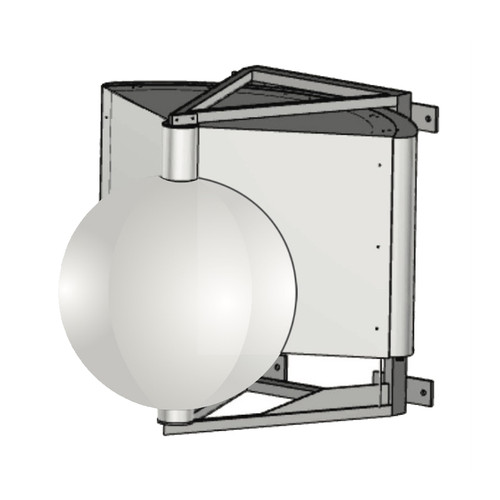

Multi-Beam Wide Band Spherical Lens Antenna 4 independent high frequency (1695-2690MHz) cross-polarized beams with 2X2 MIMO support and 15° adjustable tilt per beam.

Specifications

Technical Specifications Per Beam
Frequency 1695-2690 MHz
Gain 20.5dBi
VSWR <1.5:1
Polarization Dual Slant ±45°
Horizontal Coverage 120°
Horizontal Beamwidth (10dB) 30°
Horizontal Beamwidth (3dB) 17°
Vertical Beamwidth (10dB) 30°
Vertical Beamwidth (3dB) 17°
Beam Cross-over 10dB
Total Number of Beams 4
Manual Adjustable Tilt per Beam 0° to 15°
First Sidelobe Level <-16dB
Front to Back Ratio >28dB
Isolation Port to Port – Polarization >28dB
Isolation Port to Port – Beam >28dB
Power Rating 150W per port
Intermodulation <-153dBc
Impedance 50 ohm
Connector Quantity and Type 8 x 4.3-10 female

Mechanical Data
Dimensions (H x W x D) Spherical Lens diameter:
60cm | 24inch
Antenna dimensions:
66 x 83 x 79.2 cm
26 x 32.7 x 31.2 inch
Antenna Weight 26.42kg
58.2lbs
Radome Material Fiber Glass
Mounting Adjustable clamps

Compatible pipe diameter:
6.1 – 11.4 cm
2.4 – 4.5 inch

Environmental Ratings
Humidity 95% RH @ +30°C
Temperature -40°C to +70°C
Wind load @ 150 km/hr
N/Ibf
Frontal: 579/130
Lateral: 258/58
Rear: 351/79



Pattern Results
Horizontal Pattern (1.92GHz)

Vertical Pattern (1.92GHz)
