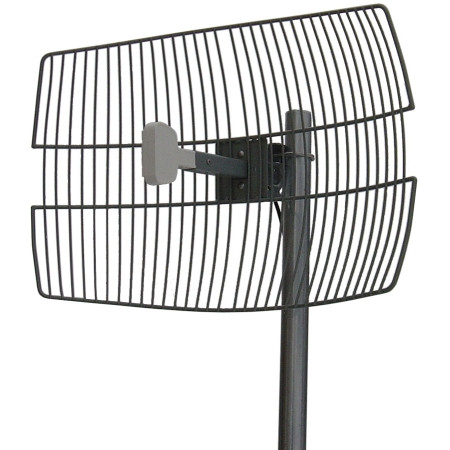

Laird Technologies 2.4-2.485GHz 19dBi Parabolic Grid Antenna N Female
(No reviews yet)
Write a Review
Write a Review
Laird Technologies
Laird Technologies 2.4-2.485GHz 19dBi Parabolic Grid Antenna N Female
$52.51
- Brand
- Laird Technologies
- SKU:
- GD24-19P-NF
- Weight:
- 7.00 LBS
LAIRD 2400-2485 MHz Grid Dish Parabolic Antenna, 19 dBi, 11Vert./17Hor. Deg/Polarization, 30" pigtail with N/F conn, Mount included.
| Narrative | The wire grid semi-parabolic design offers unsurpassed low wind loading while maintaining good RF performance. Applications: 2.4GHz Wireless LAN, Point to Point Backhaul, 802.11b and 802.11g Wireless, Client Antennas. |
| Specific Frequency (MHz) | Not Specified |
| Diameter | 2 |
| RF Connector | N Female |
| Weight (lb) | 6 |
| Size (L x W x H) | Not Specified |
| Maximum Power (Watts) | Not Specified |
| Gain (dB) | Not Specified |
| Gain at High (dBi) | Not Specified |
| Gain at Mid (dBi) | 19 |
| Gain at Low (dBi) | Not Specified |
| Polarization | Multi |
| Return Loss (dB) | Not Specified |
| XPD (dB) | Not Specified |
| Horizontal Beamwidth (Deg) | Not Specified |
| Vertical Beamwidth (Deg) | Not Specified |
| VSWR | 1.5:1 |
| Type of Jumper Included | Not Specified |
| Type of Hardware Included | Not Specified |
| Rated Wind Velocity (RWV, MPH) | Not Specified |
| Wind Loading (sq-ft) | Not Specified |
| Overall Length (In.) | Not Specified |
| Ship Dimensions (L x W x H) | 24" x 16.5" |
| Mfg. Warranty | 2 Years |
