Belden, Inc.

BELDEN RG6/U plenum rated coaxial cable. 18 ga. copper covered steel ctr. cond. Duofoil & 95% braided shield. Natural flamarrest jacket. Sold per foot.

BELDEN RG8/U air dielectric black coax. 50 ohm, solid ctr cond.,semi-solid poly dielectric, 100% shield cov. 84% vel. 4.2db/100'@900 MHz. uses 9913 CONN.

BELDEN RG8/U black cable. 50 ohms. 500' Strand. ctr conductor. Foam poly dielec. 97% shield coverage. 78% vel. of prop. 6.7dB loss/100'@900MHz. REQ.SPEC. N CONN

BELDEN RG8/U dielectric black coax 50 ohm, solid center conductor, cellular poly dielectric. 100% shield cov. 5.7dB/ 100' @ 900 MHz. 1000 ft. roll.

BELDEN RG8/U dielectric black coax 50 ohm, solid center conductor, cellular poly dielectric. 100% shield cov. 5.7dB/ 100' @ 900 MHz. 500 ft. roll.

BELDEN RG8/U dielectric black coax 50 ohm, solid center conductor, cellular poly dielectric. 100% shield cov. 5.7dB/ 100' @ 900 MHz. uses standard connectors

BELDEN RG8/U foam FEP dielectric cable. 50 ohm, .108 soild center cond., Duofoil + 90% tinned copper briad. 1000' reel. Plenum rated. REQUIRES 89913 CONNECTOR

BELDEN RG8/U foam FEP dielectric cable. 50 ohm, .108 soild center cond., Duofoil + 90% tinned copper briad. 500' reel. Plenum rated. REQUIRES 89913 CONNECTOR

BELDEN RG8/U high-flex black foam coax. stranded CTR cond,foam POLY. dielectric, 100% shield cov. 83% VOP 4.6dB/100'@900 MHz. Req. Spec. N Conn.

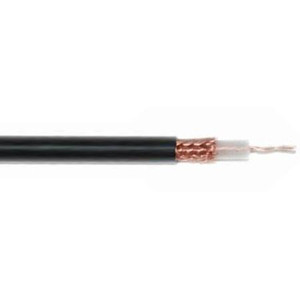

BELDEN RG8/U, JAN-C-17A coax cable. 52 ohm. VW-1 vertical wire flame rated. poly ins, 97% shield coverage, 66% vel of propagation, 8dB loss/100' @ 900 MHz.

BELDEN RG8A/U,MIL-C-17D,black coax. Non- contam. 52 ohm stranded ctr conductor. Poly dielectric,97% shield cover.66% vel of prop. 8dB loss/100' at 900 MHz. UL.

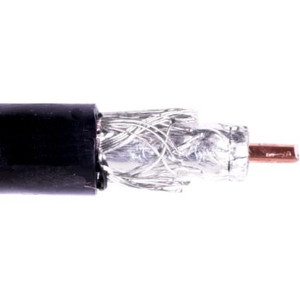

BELDEN RG8X black coax, 50 ohm stranded ctr. conduc. Foam polyethylene, 95% shd. cov., 78% vel. of prop. 12.8dB/100' at 900 MHz. USES RG8X SIZE CONNECTORS.

BELDEN RS232 24 AWG 4 PR, OA Foil Shielded, FEP/FEP Plenum .

BELDEN SC Connector, FX Brilliance Universal, Multimode OM1 62.5 mum, Includes 900 mum Boot, Pack of 25 .

BELDEN Security & Alarm cable, plenum CMP, 9-pair 18AWG stranded pairs; Beldfoil shield and flamarrest insulation w/ ripcord. Natural color.
