TV White Space (TVWS) 470-698MHz 12 dBi Dual Polarity 65 Degree Sector Antenna, 2-Port
$649.99
- Brand
- KP Performance
- SKU:
- KP-TWDP65S-12
- Weight:
- 38.00 LBS
- Shipping:
- Calculated at Checkout
| Frequency Range: | 470 MHz to 698 MHz |
| Polarization Type: | Horizontal/Vertical |
| Gain: | 12.0 dBi |
| Vertical Beamwidth: | 28° |
| Horizontal Beamwidth: | 65° |
| Electrical Downtilt: | 1° |
| F/B Ratio: | 25 dB |
| VSWR: | 1.3 |
| Cross Polar Ratio: | 30 dB |
| Port Isolation: | 30 dB |
| Connector Type: | 2x Type N Female |
| Built-in GPS Antenna: | L1/BI RHCP 3dBiC |

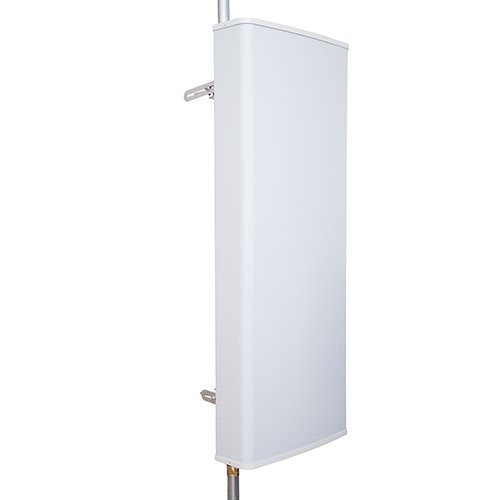

The KP Performance KP-TWDP65S-12 is a 470 MHz to 698 MHz, Dual Pol, 65-degree sector antenna designed for TV White Space (TVWS) applications. The 65 degree beamwidth provides optimized coverage area with improved capability of propagating through dense foliage and obstructions. The KP-TWDP65S-12 features 12 dBi of gain and operates from 470 MHz to 698 MHz.
Features
- 470 MHz to 698 MHz Dual Pol TVWS sector antenna
- 12 dBi gain, 65 degree beamwidth
- 2x Type N female connectors
- Heavy duty mounting brackets & small footprint
- Built-in GPS Antenna (1x TNC Connector)
- Direct Mount for Redline Elipse Radios
