Matsing MS-12H90 12 Beams : H Band (1695 – 2690 MHz) 2×2 MIMO

Matsing MS-12H90 12 Beams : H Band (1695 – 2690 MHz) 2×2 MIMO

(No reviews yet) Write a Review

Add to Quote

SKU:
MS-12H90
Weight:
129.00 LBS

Description

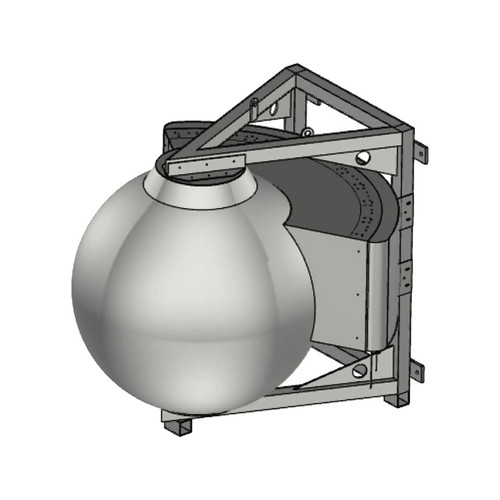

Multi-Beam Wide Band Spherical Lens Antenna: 2 rows of 6 independent high frequency (1695-2690MHz) cross-polarized beams.Top and bottom row have independent 15°tilt.

Specifications

Technical Specifications Per Beam
Frequency 1695-2690 MHz
Gain 22.5dBi
VSWR <1.5:1
Polarization Dual Slant ±45°
Horizontal Coverage 120°
Horizontal Beamwidth (10dB) 20°
Horizontal Beamwidth (3dB) 12°
Vertical Beamwidth (10dB) 20°
Vertical Beamwidth (3dB) 12°
Beam Cross-over 10dB typical
Number of Ports Beams 12
Tilt
≥12°beam separation required between the two rows		 +3° to -15° upper row
-3° to 15° lower row
First Sidelobe Level <-16dB
Front to Back Ratio >28dB
Isolation Port to Port – Polarization >28dB
Isolation Port to Port – Beam >28dB
Power Rating 200W per port
Intermodulation <-153dBc
Impedance 50 ohm
Connector Quantity and Type 24 x 4.3-10 female

Mechanical Data
Dimensions (H x W x D) Spherical Lens diameter:
90cm | 35inch

Antenna dimensions:
105.4 X 122.4 X 114.5 cm
41.5 X 48.2 X 45.1 inch
Antenna Weight 58.8kg | 129.81lbs
Radome Material Fiber Glass
Mounting Standard pipe mount
Compatible pipe diameter:
6.1 – 11.4 cm
2.4 – 4.5 inch

Environmental Ratings
Humidity 95% RH @ +30°C
Temperature -40°C to +70°C
Wind load @ 160m/hr 754N/170lbf

Pattern Results

Horizontal Pattern Top Row

 Horizontal Pattern Bottom Row

Vertical Pattern
