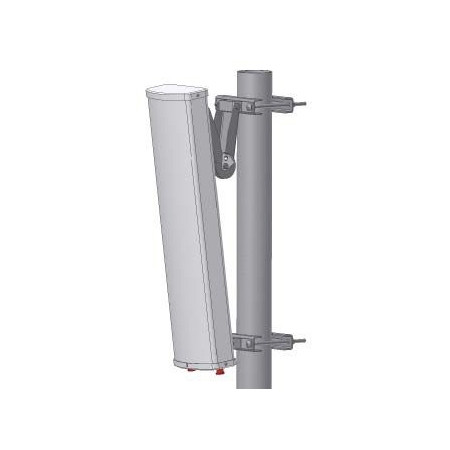

PCTEL Maxrad 3..3-3.8 GHz 17dBi Sector Antenna 65 Degree BW
(No reviews yet)
Write a Review
Write a Review
PCTEL Maxrad
PCTEL Maxrad 3..3-3.8 GHz 17dBi Sector Antenna 65 Degree BW
$301.39
- Brand
- PCTEL Maxrad
- SKU:
- SP3338-17XP65
- Weight:
- 14.48 LBS
PCTEL 3.3-3.8 GHz, 65 Degree Beamwidth Sector Antenna. 17 dBi gain, Linear Dual slant +/- 45 degrees. N Female termination. Adjustable pipe mount bracket included.
| Narrative | The SA338-90-18-DP 3.5 GHz wideband, dual linear polarized 90 sector antenna, covers the frequency band from3.3 to 3.8 GHz. Extremely low side lobes, null fill below the horizon and uniform energy distribution within the coverage area are achieved. |
| Specific Frequency (MHz) | Not Specified |
| RF Connector | N Female |
| Weight (lb) | 7 |
| Size (L x W x H) | 28" x 6.7" x 3.5" |
| Maximum Power (Watts) | Not Specified |
| Gain (dB) | Not Specified |
| Polarization | +/- 45 Deg. |
| Horizontal Beamwidth (Deg) | 65 |
| Vertical Beamwidth (Deg) | 7 |
| VSWR | 1.5 |
| Type of Jumper Included | Not Specified |
| Type of Hardware Included | Not Specified |
| Rated Wind Velocity (RWV, MPH) | Not Specified |
| Wind Loading (sq-ft) | Not Specified |
| Overall Length (In.) | Not Specified |
| Gain (dBi) | 16.5/17.0 |
| Front to Back Ratio (dB) | 25 |
| Downtilt (Deg.) | 0-10 Adjustable |
| Mfg. Warranty | 2 Years |
