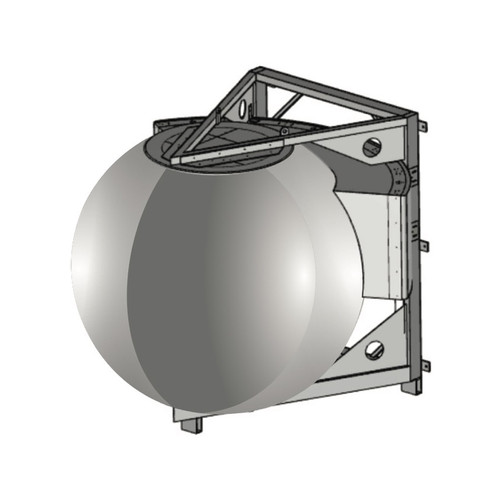

Matsing MS-8L120 8 Beams : L Band (698 – 960 MHz) 2×2 MIMO

Matsing MS-8L120 8 Beams : L Band (698 – 960 MHz) 2×2 MIMO

(No reviews yet) Write a Review

Add to Quote

SKU:
MS-8L120
Weight:
529.00 LBS

Description

Multi-Beam Spherical Lens Antenna: 8 independent low-frequency (698-960MHz) cross-polarized beams with 2×2 MIMO support per beam.

Specifications

Technical Specifications Per Beam
Frequency 698 – 960 MHz
Gain 19dBi
VSWR <1.5:1
Polarization Dual Slant ±45°
Horizontal Coverage per row 120°
Total coverage 135°
Horizontal Beamwidth (10dB) 30°
Horizontal Beamwidth (3dB) 17°
Vertical Beamwidth (10dB) 30°
Vertical Beamwidth (3dB) 17°
Beam Cross-over 10dB typical
Total Number of Beams 8
Tilt (Factory Set)
First Sidelobe Level <-15dB
Front to Back Ratio >28dB
Isolation Port to Port – Polarization >28dB
Isolation Port to Port – Beam >26dB
Power Rating 250W per port
Intermodulation <-153dBc
Impedance 50 ohm
Connector Quantity and Type 16 x 4.3-10 female

Mechanical Data
Dimensions (H x W x D) Spherical Lens diameter:
120cm | 47inch

Antenna dimensions:
128 x 155.1 x 143 cm
50.4 x 61.1 x 56.3 inch
Antenna Weight 86.08 kg | 189.7 lbs
Radome Material Fiber Glass
Mounting 2 position pipe mount

Compatible pipe diameter:
6.1 – 11.4 cm
2.4 – 4.5 inch

Environmental Ratings
Humidity 95% RH @ +30°C
Temperature -40°C to +70°C
Wind load (Front) 959N @ 150km/hr
216lbf @150km/hr

Pattern Results
Horizontal Pattern Row 1 (850MHz)

Horizontal Pattern Row 2 (850MHz)

Vertical Pattern (850MHz)
