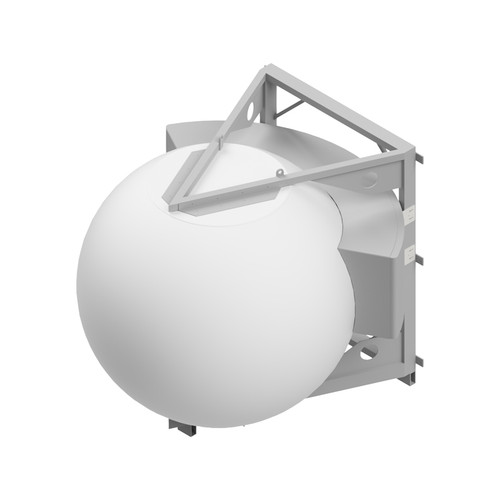

Matsing MS-6T180 6 Beams : T Band (617 – 896 MHz) 2×2 MIMO

Matsing MS-6T180 6 Beams : T Band (617 – 896 MHz) 2×2 MIMO

(No reviews yet) Write a Review

Add to Quote

SKU:
MS-6T180
Weight:
529.00 LBS

Description

Multi-Beam Spherical Lens Antenna. Six independent low frequency (617-896MHz) cross-polarized beams with 0°-15° tilt for each beam and 2×2 MIMO support.

Specifications

Technical Specifications Per Beam
Frequency 617 – 896 MHz
Gain 20.5dBi
VSWR <1.5:1
Polarization Dual Slant ±45°
Horizontal Coverage 120°
Horizontal Beamwidth (10dB) 20°
Horizontal Beamwidth (3dB) 12°
Vertical Beamwidth (10dB) 20°
Vertical Beamwidth (3dB) 12°
Beam Cross-over 10dB typical
Total Number of Beams 6
Manual Adjustable Tilt per beam 0° to 15°
First Sidelobe Level <-15dB
Front to Back Ratio >28dB
Isolation Port to Port – Polarization >28dB
Isolation Port to Port – Beam >26dB
Power Rating 250W per port
Intermodulation <-153dBc
Impedance 50 ohm
Connector Quantity and Type 12 x 4.3-10 female

Mechanical Data
Dimensions (H x W x D) Spherical Lens diameter:
180cm | 70inch

Antenna dimensions:
187.7 x 204.4 x 207 cm
73.9 x 80.5 x 81.5 inch
Antenna Weight 233.54 kg | 514.8 lbs
Radome Material Fiber Glass
Mounting 2 position pipe mount

Compatible pipe diameter:
6.1 – 11.4 cm
2.4 – 4.5 inch

Environmental Ratings
Humidity 95% RH @ +30°C
Temperature -40°C to +70°C
Wind load (Front) 2316 N @ 160km/hr
520 lbf @ 160km/hr

Pattern Results

Low-Band Horizontal Pattern (0.85GHz)

Low-Band Vertical Pattern (0.85GHz)
