Matsing MS-48C90 48 Beams: C Band (3700 – 4200 MHz) 2×2 MIMO

Matsing MS-48C90 48 Beams: C Band (3700 – 4200 MHz) 2×2 MIMO

(No reviews yet) Write a Review

Add to Quote

SKU:
MS-48C90
Weight:
529.00 LBS

Description

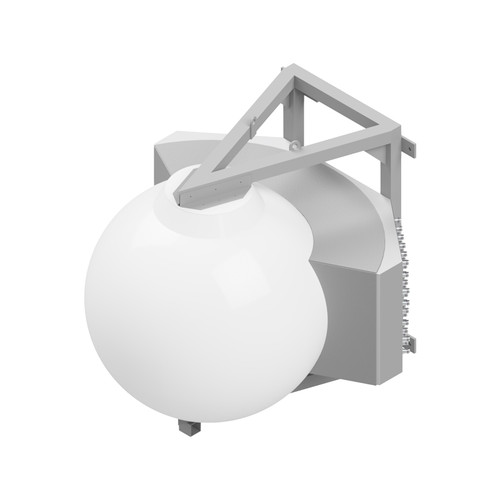

Multi-Beam Wide Band Spherical Lens Antenna: 4 rows of 12 independent high frequency (3700 – 4200 MHz) full-band cross-polarized beams.

Specifications

Technical Specifications Per Beam
Frequency 3700-4200 MHz
Gain 27dBi
VSWR <1.5:1
Polarization Dual Slant ±45°
Horizontal Coverage 120°
Horizontal Beamwidth (10dB) 10°
Horizontal Beamwidth (3dB) 6°
Vertical Beamwidth (10dB) 10°
Vertical Beamwidth (3dB) 6°
Beam Cross-over 10dB typical
Total Number of Beams 48
Tilt (Factory Set) Fixed
First Sidelobe Level <-16dB
Front to Back Ratio >28dB
Isolation Port to Port – Polarization >28dB
Isolation Port to Port – Beam >28dB
Power Rating 50W per port
Total power ≤ 3000W
Intermodulation <-153dBc
Impedance 50 ohm
Connector Quantity and Type 24 x MQ4

Mechanical Data
Dimensions (H x W x D) Spherical Lens diameter:
90cm | 35inch

Antenna dimensions:
105.4 x 108.4 x 110 cm
41.5 x 42.7 x 43.3 inch
Antenna Weight 60kg | 132.2lbs
Radome Material Fiber Glass
Mounting Standard pipe mount

Compatible pipe diameter:
6.1 – 11.4 cm
2.4 – 4.5 inch

Environmental Ratings
Humidity 95% RH @ +30°C
Temperature -40°C to +70°C
Wind load @ 150 km/h N/lbf
– Frontal 574/129
– Lateral 753/169

Pattern Diagrams @ 3.95GHz
Horizontal Pattern top/third

Horizontal Pattern second/bottom

Vertical Pattern
