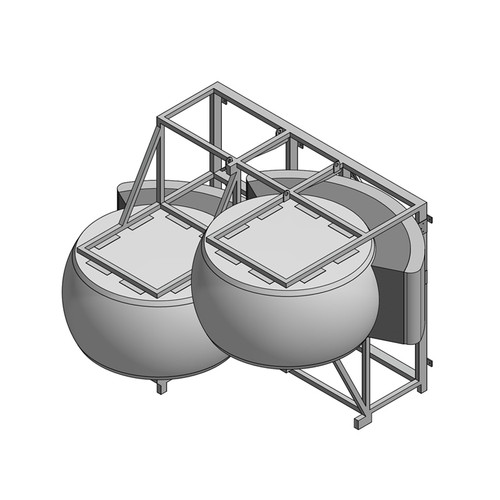

Matsing MS-20.10DBA180-T 10 Beams : T Band (617 – 896 MHz) 20 Beams : H Band (1695 – 2690 MHz)

Matsing MS-20.10DBA180-T 10 Beams : T Band (617 – 896 MHz) 20 Beams : H Band (1695 – 2690 MHz)

(No reviews yet) Write a Review

Add to Quote

SKU:
MS-20.10DBA180-T
Weight:
529.00 LBS

Description

Multi-Beam Dual Band Spherical Lens Antenna: 10 independent low frequency (617-896MHz) cross-polarized beams and 20 independent high-frequency (1695-2690MHz) cross-polarized beams.

Specifications

Technical Specifications Per Beam
Frequency 617-896 MHz 1695-2690 MHz
Gain 18dBi 26dBi
VSWR <1.5:1 <1.5:1
Polarization Dual Slant ±45° Dual Slant ±45°
Horizontal Coverage 100° 100°
Horizontal Beamwidth (10dB level) 10° 5°
Horizontal Beamwidth (3dB level) 6° 3°
Vertical Beamwidth (10dB level) 40° 16°
Vertical Beamwidth (3dB level) 25° 9°
Beam Cross-over 10dB typical 10dB typical
Total Number of Beams 10 20
Tilt 0° 0°
First Sidelobe Level <-15dB <-15dB
Front to Back Ratio >28dB >28dB
Isolation Port to Port – Polarization >28dB >28dB
Isolation Port to Port – Beam >28dB >26dB
Power Rating 200W per port 200W per port
Intermodulation <-153dBc <-153dBc
Impedance 50 ohm 50 ohm
Connector Quantity and Type 20 X 4.3-10 female 40 X 4.3-10 female

Mechanical Data
Dimensions (H x W x D) Two Truncated Lenses:
Spherical Lens diameter:
180cm | 70inch

Antenna dimensions:
219.7 x 391.6 x 220.9 cm
86.5 x 154.2 x 87 inch
Antenna Weight 522 kg | 1150.8 lbs
Radome Material Fiber Glass
Mounting 4 position pipe mount

Compatible pipe diameter:
6.1 – 11.4 cm
2.4 – 4.5 inch

Environmental Ratings
Humidity 95% RH @ +30°C
Temperature -40°C to +70°C
Wind load: @ 160km/hr
– Front 5868N/1319lbf
– Side 4760N/1070lbf
– Back 6547N/1471lbf

Pattern Results

High-Band Horizontal Pattern

(1950MHz)

 High-Band Vertical pattern

(1950MHz)
Low-Band Horizontal Pattern

(700MHz)

Low-Band Vertical Pattern

(700MHz)
