Matsing MS-12H180 12 Beams : H Band (1695 – 2690 MHz) 2×2 MIMO

Matsing MS-12H180 12 Beams : H Band (1695 – 2690 MHz) 2×2 MIMO

(No reviews yet) Write a Review

Add to Quote

SKU:
MS-12H180
Weight:
529.00 LBS

Description

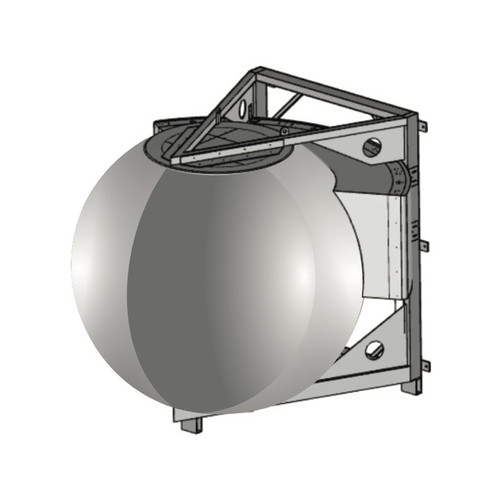

Multi-Beam Wide Band Spherical Lens Antenna: 12 independent high frequency (1695-2690MHz) cross-polarized beams, with independent 15° tilt per beam.

Specifications

Technical Specifications Per Beam

Frequency 1695-2690 MHz
Gain 27.5dBi
VSWR <1.5:1
Polarization Dual Slant ±45°
Horizontal Coverage 120°
Horizontal Beamwidth (10dB) 10°
Horizontal Beamwidth (3dB)  6°
Vertical Beamwidth (10dB) 10°
Vertical Beamwidth (3dB) 6°
Beam Cross-over 10dB typical
Number of Ports Beams 12
Tilt 0 – 15°
First Sidelobe Level <-16dB
Front to Back Ratio >28dB
Isolation Port to Port – Polarization >28dB
Isolation Port to Port – Beam >28dB
Power Rating 250W per port
Intermodulation <-153dBc
Impedance 50 ohm
Connector Quantity and Type 24 x 4.3-10 female

Mechanical Data

Dimensions (H x W x D) Spherical Lens Diameter:
180cm | 70inchAntenna dimensions:
187.1 x 207 x 204.4 cm
73.7 x 81.5 x 80.5 inch
Antenna Weight 240 kg | 529 lbs
Radome Material Fiber Glass
Mounting 2 position pipe mount

Compatible pipe diameter:
6.1 – 11.4 (cm) | 2.4 – 4.5 (inch)

Environmental Ratings

Humidity 95% RH @ +30°C
Temperature -40°C to +70°C
Wind load @ 150m/hr N/Ibf
Frontal: 1838/413
Lateral: 2053/462

Pattern Results
Horizontal Pattern (1.80GHz)

Vertical Pattern (1.80GHz)
