Mars Antennas 740-960/1710-2700 MHz 4/6dBi Omni Antenna
(No reviews yet)
Write a Review
Write a Review
Mars Antennas

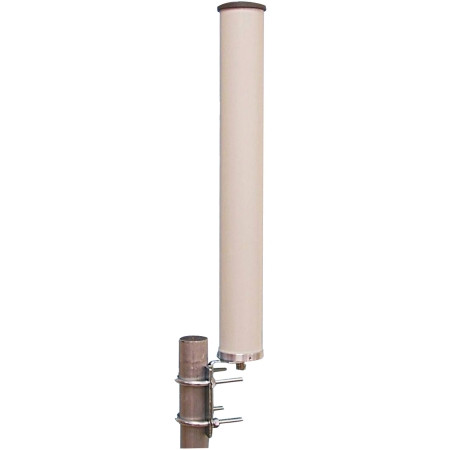

Mars Antennas 740-960/1710-2700 MHz 4/6dBi Omni Antenna
$214.20
- Brand
- Mars Antennas
- SKU:
- MA-WO7402700-5
- Weight:
- 1.00 LBS
- Shipping:
- Calculated at Checkout
The Mars MA-WO7402700-5 740-960/1710-2700 MHz multi band omni-directional base station antenna with N Female connector. This antenna provides a cost effective solution for GSM 900/1800, LTE, WLL, WLAN, ISM, WiMAX, Point-to-Point and Point-to-Multi Point applications as well as MESH networks. UV protected radome suitable for harsh environment installations. Antenna features stable and efficient performance with up to 6 dBi of gain.
| Specific Frequency (MHz) | 740-960/1710-2700 |
| RF Connector | N Female |
| RF Connector Installed | Yes |
| Weight (lb) | 0.77 |
| Size (L x W x H) | Not Specified |
| Maximum Power (Watts) | 50 |
| Gain (dB) | 4/6 dBi |
| Polarization | Linear Vertical |
| Horizontal Beamwidth (Deg) | 360 |
| Vertical Beamwidth (Deg) | 35 |
| VSWR | 1.5:1 |
| Lightning Protection | DC Ground |
| Type of Jumper Included | None |
| Type of Hardware Included | 2.5" PM (End) Attachment |
| Rated Wind Velocity (RWV, MPH) | 124.27 |
| Wind Loading (sq-ft) | Not Specified |
| Overall Length (In.) | 18.50 |
| Mfg. Warranty | 10 Years |
