Mars Antennas 698-2500MHz Indoor Antenna with DC Return & Mount
(No reviews yet)
Write a Review
Write a Review
Mars Antennas
Mars Antennas 698-2500MHz Indoor Antenna with DC Return & Mount
$173.41
- Brand
- Mars Antennas
- SKU:
- MA-CLTE-14TB
- Weight:
- 1.45 LBS
- Shipping:
- Calculated at Checkout

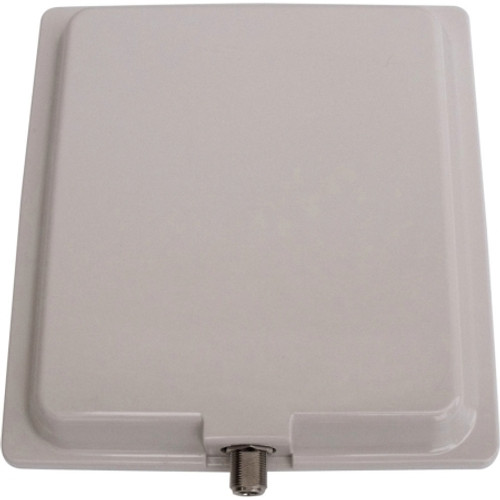

The Mars MA-CLTE-14TB Up-To-Date Multi Band Panel Antenna covers all the bands for LTE 700 MHz, cellular bands, as well as ISM, WLAN, GSM1800, UMTS and Bluetooth with N Female connector. The antenna is aesthetic, small and has unobtrusive profile that blends easily with any environment. The antenna can be easily used either for Indoor or Outdoor Applications and features an Az/El Adjustable MNT-22 Mount.
| Specific Frequency (MHz) | 698-806/806-960/1710-2170/2400-2500 |
| RF Connector | N Female |
| RF Connector Installed | Direct Termination |
| Weight (lb) | 1.1 |
| Size (L x W x H) | 9.1" x 8.4" x 1.2" |
| Maximum Power (Watts) | 5 |
| Gain (dBi) | 5/6/6.5/5 |
| Intermodulation (dBc) | Not Specified |
| Polarization | Linear Vertical |
| Horizontal Beamwidth (Deg) | 130/140/80/55 |
| Vertical Beamwidth (Deg) | 70/60/45/30 |
| VSWR | 2:1/2:1/1.7:1/1.7:1 |
| Mounting Style | Wall |
| Jumper Included | No |
| Color | White |
| Paintable | Yes |
| Pattern Type | Not Specified |
| Mfg. Warranty | 1 Year |
