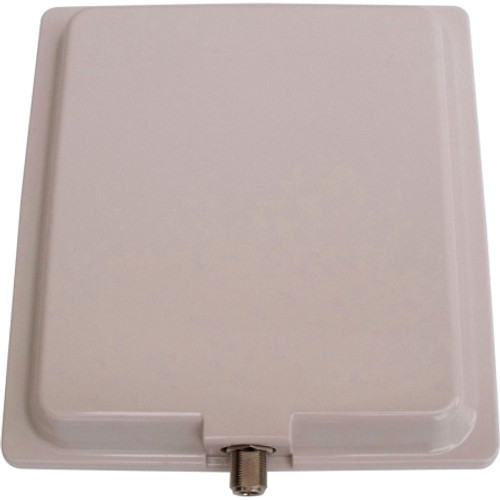

Mars Antennas 698-2500MHz 4-7dBi Indoor Panel Antenna

(No reviews yet) Write a Review

$141.75

Brand: Mars Antennas
SKU:: MA-CLTE-14
UPC:
Weight:: 1.22 LBS
Shipping:: Calculated at Checkout

Current Stock:

Quantity:

Adding to cart… The item has been added

Description
0 Reviews

The Mars MA-CLTE-14 Up-To-Date Multi Band Panel Antenna covers all the bands for LTE 700 MHz, cellular bands, as well as ISM, WLAN, GSM1800, UMTS and Bluetooth with N Female connector. The antenna is aesthetic, small and has unobtrusive profile that blends easily with any environment. The antenna can be easily used either for Indoor or Outdoor Applications and features different mounting options.

Specific Frequency (MHz)	698-806/806-960/1710-2170/2400-2500
RF Connector	N Female
RF Connector Installed	Direct Termination
Weight (lb)	1.1
Size (L x W x H)	9.1" x 8.4" x 1.2"
Maximum Power (Watts)	5
Gain (dBi)	5/6/6.5/5
Intermodulation (dBc)	Not Specified
Polarization	Linear Vertical
Horizontal Beamwidth (Deg)	130/140/80/55
Vertical Beamwidth (Deg)	70/60/45/30
VSWR	2:1/2:1/1.7:1/1.7:1
Mounting Style	Wall
Jumper Included	No
Color	White
Paintable	Yes
Pattern Type	Not Specified
Mfg. Warranty	1 Year
