Laird Technologies 3.3-3.8 GHz 25 dBi 2.125' Dual Polarity Dish
(No reviews yet)
Write a Review
Write a Review
Laird Technologies
Laird Technologies 3.3-3.8 GHz 25 dBi 2.125' Dual Polarity Dish
$258.44
- Brand
- Laird Technologies
- SKU:
- HDDA3W-25-DP
- Weight:
- 50.00 LBS

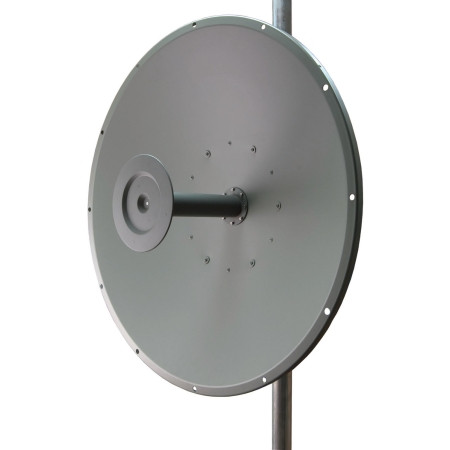

The Laird HDDA3W-25-DP 3300-3800 HD series high performance dish antenna is extremely rugged for long service life in extreme environments. The antenna meets ETSI EN 302.326-3 DN1-DN5 specifications, the most stringent specifications for point to point backhaul antennas. The antenna is dual polarized and can be mounted for either vertical or horizontal polarization.
| Specific Frequency (MHz) | 3300-3800 |
| Diameter | 2.125 ft |
| RF Connector | N Female |
| Size (L x W x H) | Not Specified |
| Maximum Power (Watts) | 100 |
| Gain (dB) | Not Specified |
| Gain at High (dBi) | Not Specified |
| Gain at Mid (dBi) | 25 |
| Gain at Low (dBi) | Not Specified |
| Polarization | Multi |
| Return Loss (dB) | Not Specified |
| XPD (dB) | Not Specified |
| Horizontal Beamwidth (Deg) | 8.5 |
| Vertical Beamwidth (Deg) | 8.5 |
| VSWR | 1.5:1 |
| Type of Jumper Included | Not Included |
| Type of Hardware Included | Not Specified |
| Rated Wind Velocity (RWV, MPH) | Not Specified |
| Wind Loading (sq-ft) | Not Specified |
| Overall Length (In.) | N/A |
| Radome Included | Not Included |
| Ship Dimensions (L x W x H) | 25.5" x 25.5" x 8" |
| Mfg. Warranty |
