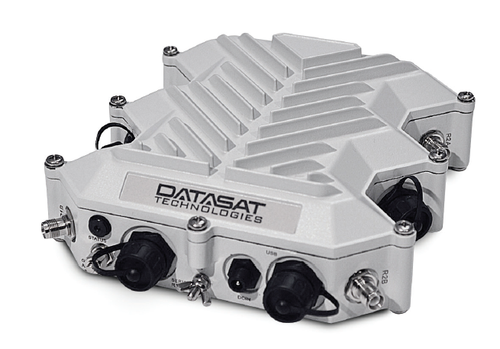

DataSat QuadraFlex DN100 - Includes Power supply and installation kit

QuadraFlex DN100 - Includes Power supply and installation kit

The QuadraFlex DN100 is a rugged, full outdoor carrier grade communication system, which provides flexible access and backhaul capabilities for point to point and point to multi point applications.

The Datasat QuadraFlex range provides security, manageability, and reliability. The inherent drawbacks of ordinary mesh technology are overcome by using Layer 3 in the backhaul, and this makes the network efficient and far more reliable.
The Datasat QuadraFlex range provides a versatile and scalable solution in line with current connectivity requirements. Intelligent Layer 3 backhaul and access point connectivity can be provided simultaneously with a single, all weather unit. Thanks to the Layer 3 architecture, firewall and usable QoS can be provided in a controller-less environment, to make sure the system delivers critical content reliably. With support for industry standard encryption, the system conforms to the stringent security requirements of today.
Designed for the extremes – Weather proof and compact design allow for indoor and outdoor deployments of the same unit. Multi-radio support ensures multi-band and multi-mode operation, which increases coverage area, resilience and significantly reduces the number of DN100’s needed.
Layer 3 architecture - Thanks to innovative Layer 3 architecture, the QuadraFlex units bring the network intelligence closer to the edge of the network. With Firewall, QoS and routing being delivered via the distributed intelligence architecture, the network eliminates a central controller and becomes inherently resilient.
More security - The network is made inherently secure by proper IP planning and design. Layer 3 design enables provisioning of complex network architectures to improve security and resilience. Multiple networks can be provisioned and managed thanks to intelligent routing and IP design.
More flexibility - Add or remove routers from a network with minimal effort. Networks can be scaled up or down in a matter of minutes. Controller-less operation enables quick network provisioning and scaling, ideal for urgent deployments to solve bandwidth congestion issues.
More delivered - With true multi radio capability, the QuadraFlex DN100 reduces the number of devices deployed, thus reducing real estate used. The Layer 3 architecture removes the need for routers or expensive controllers and delivers network connectivity with distributed intelligence static routers, even in extreme environments.

DN100 FEATURES

• Layer 3 architecture ensures maximum Reach

• Distributed Intelligence Architecture brings features to the edge of the network and makes the network inherently resilient

• MIL-STD-810G operating temperature compliant between -40oC and +60oC

• MIL-STD-810G vibration standard compliant

• Dual band Licence exempt* 2.4GHz and 5GHz simultaneous operation

• 2x High Power Radio Interfaces (802.11a/b/g/n) operating simultaneously

• 2x2:2 MIMO Operation

• Up to 300Mbps headline connection speed

• 2x Electrical Gigabit Ethernet ports with PoE In capability

• VLAN trunking to device

• Ruggedised IP67 designed form factor

• WPA/AES and WEP security for legacy clients

• WPA-2 AES industry standard security support for backhaul traffic at all times

• Bespoke antenna configuration

• RP-TNC connectors for antenna flexibility

• Automatic Route healing thanks to Layer 3 architecture

• Controller-less & Controller-based Environments

• Multi-radio backhaul on non-interfering channels

• Minimal Latency and Jitter per hop

• Multiple SSID support on every radio interface

• Remote Management at Network, Router or Radio

• Software configurable single SKU product reduces stock holding

• Integrates seamlessly with Datasat Antenna, QuadraSphere NMS, And QuadraStorm CCTV solutions

• Eliminates any additional routing equipment or integration issues
