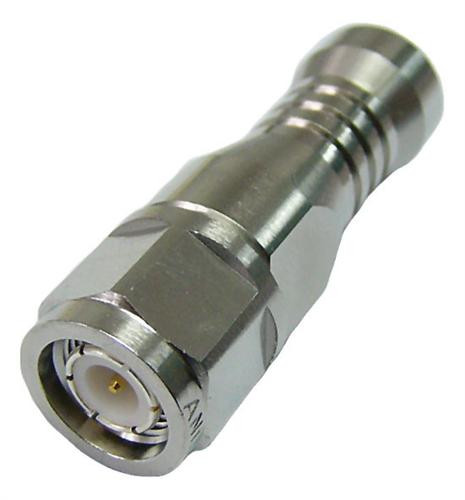

CommScope TNC/M Clamp for CNT-400
| General Specifications | |
| Interface | TNC Male |
| Body Style | Straight |
| Brand | CNT® |
| Electrical Specifications | |
| Operating Frequency Band | 0 – 6000 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| RF Operating Voltage, maximum (vrms) | 500.00 V |
| dc Test Voltage | 1500 V |
| Outer Contact Resistance, maximum | 0.40 mOhm |
| Inner Contact Resistance, maximum | 1.50 mOhm |
| Insulation Resistance, minimum | 5000 MOhm |
| Average Power | 580.0 W @ 900 MHz |
| Peak Power, maximum | 5.00 kW |
| Insertion Loss, typical | 0.05 dB |
| Outline Drawing | |
| Mechanical Specifications | |
| Outer Contact Plating | Trimetal |
| Inner Contact Plating | Gold |
| Outer Contact Attachment Method | Crimp |
| Inner Contact Attachment Method | Captivated |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-17:17 |
| Connector Retention Tensile Force | 330 N | 74 lbf |
| Connector Retention Torque | 0.56 N-m | 0.41 ft lb |
| Insertion Force | 15.00 N | 3.37 lbf |
| Insertion Force Method | IEC 61169-17:9.3.5 |
| Pressurizable | No |
| Coupling Nut Proof Torque | 1.70 N-m | 1.25 ft lb |
| Coupling Nut Proof Torque Method | IEC 61169-17:9.3.6 |
| Coupling Nut Retention Force | 445.00 N | 100.04 lbf |
| Coupling Nut Retention Force Method | IEC 61169-17:9.3.11 |
| Dimensions | |
| Nominal Size | 0.405 in |
| Diameter | 16.50 mm | 0.65 in |
| Length | 50.01 mm | 1.97 in |
| Weight | 39.28 g | 0.09 lb |
| Width | 16.50 mm | 0.65 in |
| Environmental Specifications | |
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
Immersion Depth  | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
| Climatic Sequence Test Method | IEC 60068-1 |
| Damp Heat Steady State Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
| Corrosion Test Method | IEC 60068-2-11 |
| Standard Conditions | |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
| 0–3000 MHz | 1.05 | 32.00 |
| 3000–6000 MHz | 1.15 | 23.00 |
Regulatory Compliance/Certifications
| Agency | Classification |
| RoHS 2011/65/EU | Compliant by Exemption |
| China RoHS SJ/T 11364-2006 | Above Maximum Concentration Value (MCV) |
| ISO 9001:2008 | Designed, manufactured and/or distributed under this quality management system |
