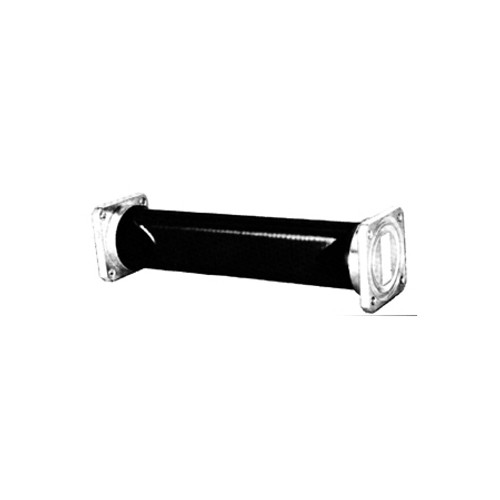

CommScope Flexible Twist for WR112 7.05-10.0 GHz
$439.38
- Brand
- CommScope
- SKU:
- F112HHS5
- Weight:
- 3.18 LBS
CommScope Flexible Twist for WR112 7.05-10.0 GHz
| Electrical Specifications | |
| Operating Frequency Band | 7.05 – 10.0 GHz |
| Attenuation | 0.40 db/m | 0.12 db/ft |
| Average Power | 1260 W |
| Peak Power | 315.0 kW |
| VSWR | 1.13 |
| General Specifications | |
| Component | Flexible Twist |
| Waveguide Size | WR112 | WG15 | R84 |
| Interface | PDR84 |
| Interface 2 | PDR84 |
| Length | 1200 mm | 47 in |
| Mechanical Specifications | |
| Maximum Twist | 264.00 °/m | 80.00 °/ft |
| Minimum Bend Radius, Multiple Bends (E Plane) | 76.00 mm | 3.00 in |
| Minimum Bend Radius, Multiple Bends (H Plane) | 152.00 mm | 6.00 in |
| Pressurization, maximum | 35 psi | 240 kPa |
Component  | Interface  | Interface 2 | |
Regulatory Compliance/Certifications
| Agency | Classification |
| RoHS 2011/65/EU | Compliant by Exemption |
| China RoHS SJ/T 11364-2006 | Above Maximum Concentration Value (MCV) |
| ISO 9001:2008 | Designed, manufactured and/or distributed under this quality management system |
