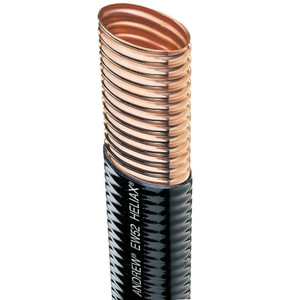

EW52, HELIAX® Standard Elliptical Waveguide, 5.6–6.425 GHz, black PE jacket
| Construction Materials | |
| Jacket Material | PE |
| Conductor Material | Corrugated copper |
| Jacket Color | Black |
| Dimensions | |
| Cable Volume | 1045.0 L/km | 11.3 ft³/kft |
| Cable Weight | 0.88 kg/m | 0.59 lb/ft |
| Diameter Over Jacket (E Plane) | 57.20 mm | 2.25 in |
| Diameter Over Jacket (H Plane) | 33.30 mm | 1.31 in |
| Electrical Specifications | |
| Operating Frequency Band | 5.6 – 6.425 GHz |
| eTE11 Mode Cutoff | 3.650 GHz |
| Group Delay | 126 ns/100 ft @ 6.200 GHz 413 ns/100 m @ 6.200 GHz |
| Environmental Specifications | |
| Installation Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -70 °C to +85 °C (-94 °F to +185 °F) |
| General Specifications | |
| Brand | HELIAX® |
| Mechanical Specifications | |
| Maximum Twist | 3.00 °/m | 1.00 °/ft |
| Minimum Bend Radius, Multiple Bends (E Plane) | 305.00 mm | 12.00 in |
| Minimum Bend Radius, Multiple Bends (H Plane) | 810.00 mm | 32.00 in |
| Minimum Bend Radius, Single Bend (E Plane) | 200.00 mm | 8.00 in |
| Minimum Bend Radius, Single Bend (H Plane) | 560.00 mm | 22.00 in |
| Note | |
| Performance Note | Values typical, unless otherwise stated |
| Standard Conditions | |
| Attenuation, Ambient Temperature | 24 °C | 75 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Temperature Rise | 42 °C | 76 °F |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
| 5.6–6.425 GHz | 1.15 | 23.10 |
- * VSWR/Return Loss indicated is for lengths up to 300 ft (91.4 m)
- * VSWR/Return Loss is guaranteed for factory-fit and typical for field-fit assemblies
- * Custom length performance: Call +1-800-255-1479 (N. America), 1-779-435-6500 (Int’l.), or your local Andrew representative
Attenuation
| Frequency (GHz) | Attenuation (dB/100 ft) | Attenuation (dB/100 m) | Average Power (kW) | Group Velocity % |
| 5.6 | 1.258 | 4.126 | 5.687 | 75.8 |
| 5.8 | 1.226 | 4.021 | 5.835 | 77.7 |
| 6 | 1.199 | 3.935 | 5.963 | 79.4 |
| 6.2 | 1.177 | 3.863 | 6.074 | 80.8 |
| 6.4 | 1.159 | 3.802 | 6.171 | 82.1 |
Regulatory Compliance/Certifications
| Agency | Classification |
| RoHS 2011/65/EU | Compliant |
| China RoHS SJ/T 11364-2006 | Below Maximum Concentration Value (MCV) |
| ISO 9001:2008 | Designed, manufactured and/or distributed under this quality management system |
