CommScope 5.925 to 6.425 GHz 6ft High Performance Antenna
(No reviews yet)
Write a Review
Write a Review
CommScope
CommScope 5.925 to 6.425 GHz 6ft High Performance Antenna
$6,210.06
- Brand
- CommScope
- SKU:
- HP6-59-P1A/K
- Weight:
- 254.00 LBS
- Shipping:
- Calculated at Checkout

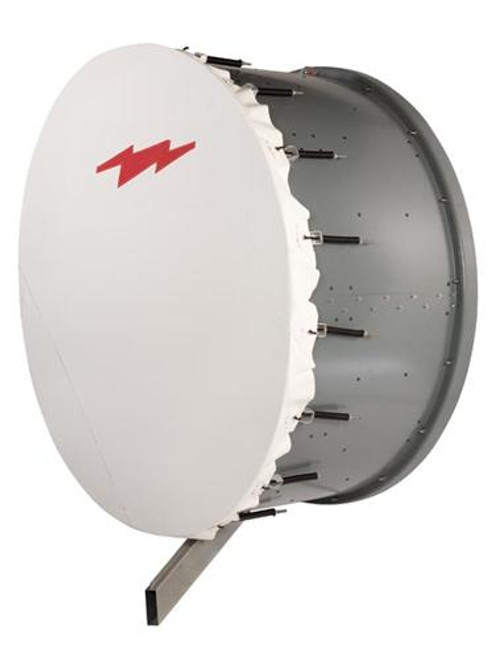

1.8 m | 6 ft High Performance Parabolic Shielded Antenna, single-polarized, 5.925–6.425 GHz, CPR137G, gray antenna, standard white radome with flash, standard pack—one-piece reflector
High Performance Point-to-Point Microwave Antenna
Single-polarized high performance parabolic shielded antenna
Andrew Solutions HP Series antennas are ideal for microwave applications demanding good pattern performance and frequency coordination.
Andrew Solutions shielded point-to-point microwave antennas deliver exceptional RF pattern performance and superior frequency control, all for a surprisingly low lifetime cost. A wide variety of configurations and capabilities provide network operators with the flexibility and control they need in today’s evolving market.
Andrew Solutions designs and engineers a complete range of point-to-point microwave antennas that help operators to maximize bandwidth efficiency and increase system reliability while minimizing both capital and operational expenditures
Equipped with a painted reflector and RF-absorbing shield, each antenna also features a low VSWR feed, a planar radome, and vertical pipe mount. All are engineered and tested to Andrew’s uncompromising standards.
Radiation Pattern Envelopes—For each antenna model, Andrew publishes a complete range of radiation pattern envelopes (RPEs). Each detailed pattern envelope provides an easy-to-read and informative description of how the antenna performs at various frequencies and along specific planes. Copies of the RPEs for each antenna are also on file at various telecom regulatory offices around the world.
Equipped with a painted reflector and RF-absorbing shield, each antenna also features a low VSWR feed, a planar radome, and vertical pipe mount. All are engineered and tested to Andrew’s uncompromising standards.
Radiation Pattern Envelopes—For each antenna model, Andrew publishes a complete range of radiation pattern envelopes (RPEs). Each detailed pattern envelope provides an easy-to-read and informative description of how the antenna performs at various frequencies and along specific planes. Copies of the RPEs for each antenna are also on file at various telecom regulatory offices around the world.
- Good RF pattern performance
- Low lifetime cost
| General Specifications | |
| Antenna Type | HP - High Performance Parabolic Shielded Antenna, single-polarized |
| Diameter, nominal | 1.8 m | 6 ft |
| Packing | Standard pack |
| Radome Color | White |
| Radome Material | Standard |
| Reflector Construction | One-piece reflector |
| Antenna Input | CPR137G |
| Antenna Color | Gray |
| Antenna Type | HP - High Performance Parabolic Shielded Antenna, single-polarized |
| Diameter, nominal | 1.8 m | 6 ft |
| Flash Included | Yes |
| Polarization | Single |
| Electrical Specifications | |
| Operating Frequency Band | 5.925 – 6.425 GHz |
| Beamwidth, Horizontal | 1.8 ° |
| Beamwidth, Vertical | 1.8 ° |
| Cross Polarization Discrimination (XPD) | 30 dB |
| Electrical Compliance | ETSI Class 2 | US FCC Part 101A |
| Front-to-Back Ratio | 62 dB |
| Gain, Low Band | 38.4 dBi |
| Gain, Mid Band | 38.9 dBi |
| Gain, Top Band | 39.4 dBi |
| Operating Frequency Band | 5.925 – 6.425 GHz |
| Radiation Pattern Envelope Reference (RPE) | 3302J |
| Return Loss | 30.7 dB |
| VSWR | 1.06 |
| Mechanical Specifications | |
| Fine Azimuth Adjustment | ±15° |
| Fine Elevation Adjustment | ±20° |
| Mounting Pipe Diameter | 115 mm | 4.5 in |
| Net Weight | 115 kg | 254 lb |
| Side Struts, Included | 1 inboard |
| Side Struts, Optional | 1 inboard |
| Wind Velocity Operational | 110 km/h | 68 mph |
| Wind Velocity Survival Rating | 200 km/h | 124 mph |
| Wind Forces At Wind Velocity Survival Rating | |
| Angle α for MT Max | -130 ° |
| Axial Force (FA) | 7744 N | 1741 lbf |
| Side Force (FS) | 3836 N | 862 lbf |
| Twisting Moment (MT) | 2955 N•m |
| Weight with 1/2 in (12 mm) Radial Ice | 235 kg | 518 lb |
| Zcg with 1/2 in (12 mm) Radial Ice | 660 mm | 26 in |
| Zcg without Ice | 466 mm | 18 in |
