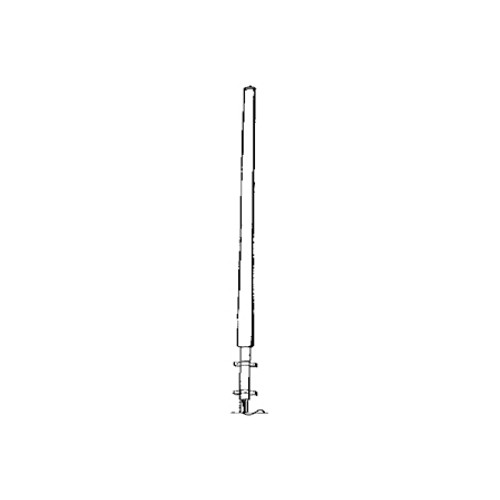

ANR 824-896MHz 10dB Fiberglass Omnidirectional Antenna
(No reviews yet)
Write a Review
Write a Review
ANR
ANR 824-896MHz 10dB Fiberglass Omnidirectional Antenna
$1,375.00
- Brand
- ANR
- SKU:
- DB810KE-XC
- Weight:
- 90.00 LBS
- Shipping:
- Calculated at Checkout
CommScope 824-896 MHz transposed tube fiberglass 3" OD radome antenna with 10dB gain and a 500 watt input. This antenna has a direct 7/16 DIN female termination and includes mounting hardware.
| Specific Frequency | 824-896 MHz |
| Gain dBi | 12.15 dBi |
| Gain dBd | 10 dBd |
| Polarization | Vertical |
| Maximum VSWR | 1.5:1 |
| Maximum Power | 500 W |
| Lightning Protection | DC Ground |
| Electrical Downtilt | Fixed |
| Fixed Electrical Downtilt | 0 deg |
| RF Connectors | 7/16 DIN Female |
| Connector Placement | Bottom |
| Jumper Included | No |
| Type of Jumper Included | None |
| Type of Hardware Included | DB5091-3 |
| Maximum Rated Wind Velocity | 125 mile/h |
| Item Height | 3 in |
| Item Length | 173 in |
| Item Width | 3 in |
| Item Weight | 36 lb |
| Mfg. Warranty | 2 Years |
