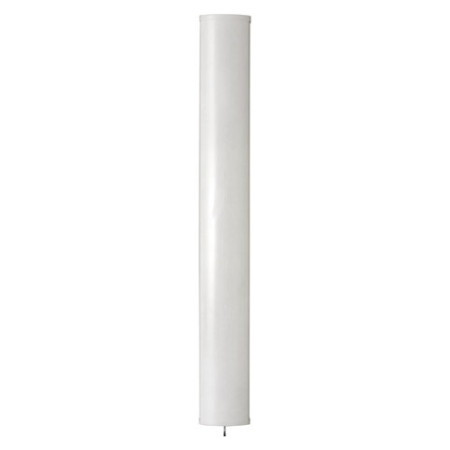

ANR 698-896 MHz 65 Deg. HBW AISG 2.0 Actuator
$2,390.00
- Brand
- ANR
- SKU:
- LNX-6515DS-A1M
- Weight:
- 65.00 LBS
- Shipping:
- Calculated at Checkout
COMMSCOPE 698-896 MHz, 65 degree horizontal beamwidth. Factory installed AISG 2.0 Actuator. 7/16 DIN Female connectors. Includes Part 649163-1 downtilt mounting kit.
| Specific Frequency | 698-806 MHz / 806-896 MHz |
| Gain dBi | 16.6 dBi / 16.9 dBi |
| Gain dBd | 14.6 dBd / 15.5 dBd |
| Minimum Front Back Ratio | 27 dB |
| Polarization | +/- 45 Degrees |
| Horizontal Beamwidth | 65 deg |
| Maximum VSWR | 1.4:1 |
| Maximum Power | 400 W |
| Lightning Protection | DC Ground |
| Electrical Downtilt | Variable |
| Variable Electrical Downtilt | 0-8 deg |
| RF Connectors | 7/16 DIN Female |
| Connector Placement | Bottom |
| Jumper Included | No |
| Type of Jumper Included | No |
| Type of Hardware Included | Not Specified |
| Maximum Rated Wind Velocity | 149.8 mile/h |
| Item Height | 7.1 in |
| Item Length | 96.3 in |
| Item Width | 11.9 in |
| Item Weight | 63 lb |
| Mfg. Warranty | 1 Year |
