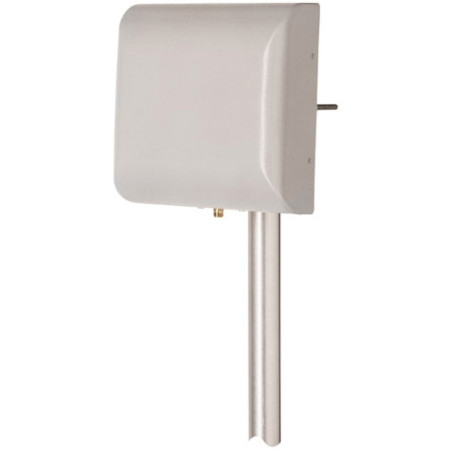

ANR 1710-2500 MHz 13.9/14.9dBd Panel Sector Antenna

(No reviews yet) Write a Review

$325.00

Brand: ANR
SKU:: DB992HG28N-B
UPC:
Weight:: 8.00 LBS
Shipping:: Calculated at Checkout

Current Stock:

Quantity:

Adding to cart… The item has been added

Description
0 Reviews

Andrew DB992HG28N-B is a flat panel sector antenna that operates in the 1710 - 2490 MHz frequency range. The gain is 13.9 dBd (1710 - 2170 MHz) and 14.9 gain (2170 - 2490 MHz). Maximum power input is 100 watts with N Female connector located at the bottom of the antenna. This sector panel antenna includes the DB390 pipe mounting kit for 2.4 - 4.5 inch OD round members. The sector base antenna meets RoHS 2002/95/EC.

Andrew Solutions sector base antennas are ideal for WiMAX applications in the 2.3 2.5 3.5 and 5.8 GHz bands. Featuring a high gain this panel antenna is ideal for point-to-point and repeater applications. Measuring only 2.75 inches deep these sector antennas incorporate Andrews exclusive flat radiator and transformer design. The small lightweight design makes DB992HG28N-B perfect for use in areas where visual discretion is vital.

Specific Frequency	1710-2170 MHz / 2170-2490 MHz
Gain dBi	16 dBi
Gain dBd	13.85 dBd
Minimum Front Back Ratio	35 dB
Polarization	Horizontal / Vertical
Horizontal Beamwidth	28 deg
Maximum VSWR	1.4:1 / 1.9:1
Maximum Power	100 W
Electrical Downtilt	Fixed
Fixed Electrical Downtilt	0 deg
RF Connectors	N Female
Connector Placement	Bottom
Jumper Included	No
Type of Jumper Included	None
Type of Hardware Included	DB390, fits 1-1/4"-5-1/2" OD pipe.
Maximum Rated Wind Velocity	125 mile/h
Item Height	5 in
Item Length	12 in
Item Width	12 in
Item Weight	3 lb
Mfg. Warranty	1 Year
