ANR 17.700-19.700 GHz 2 ft Sentinel Antenna Dual Pol
(No reviews yet)
Write a Review
Write a Review
ANR

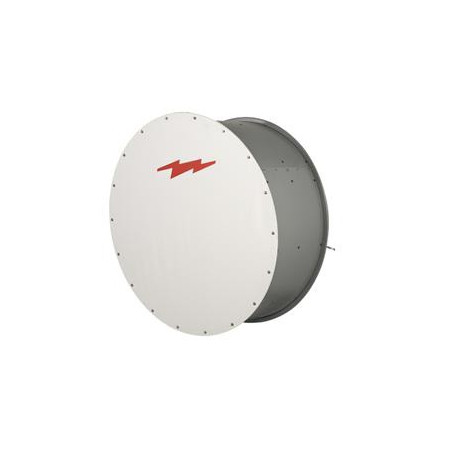

ANR 17.700-19.700 GHz 2 ft Sentinel Antenna Dual Pol
$2,500.00
- Brand
- ANR
- SKU:
- SHPX2-18-3GR
- Weight:
- 34.55 LBS
- Shipping:
- Calculated at Checkout
COMMSCOPE 17.700- 19.700 GHz 2' SentinelHigh Perform Antenna. Dual-polarized. UBR220 Flange, Gray Antenna Gray Polymer Radomewithout Flash. 38.9 dBi Mid dBi
| Specific Frequency | 17.7-19.7 GHz |
| Diameter | 2 ft |
| Gain, Low | 38.4 dBi |
| Gain, Middle | 38.9 dBi |
| Gain, High | 39.1 dBi |
| Polarization | Dual |
| Horizontal Beamwidth | 2.1 deg |
| Minimum Front Back Ratio | 70 dB |
| Return Loss | 17.7 dB |
| XPD | 30 dB |
| Maximum VSWR | 1.3:1 |
| Flange Type | UBR220 |
| Maximum Rated Wind Velocity | 155 |
| Item Height | 26 in |
| Item Length | 17 in |
| Item Width | 26 in |
| Item Weight | 24 lb |
| Mfg. Warranty | 3 Years |
