ANR 158-166 MHz 3/6dB Exposed Dipole Omni Antenna
(No reviews yet)
Write a Review
Write a Review
ANR
ANR 158-166 MHz 3/6dB Exposed Dipole Omni Antenna
$440.00
- Brand
- ANR
- SKU:
- DB222-B
- Weight:
- 25.50 LBS
- Shipping:
- Calculated at Checkout

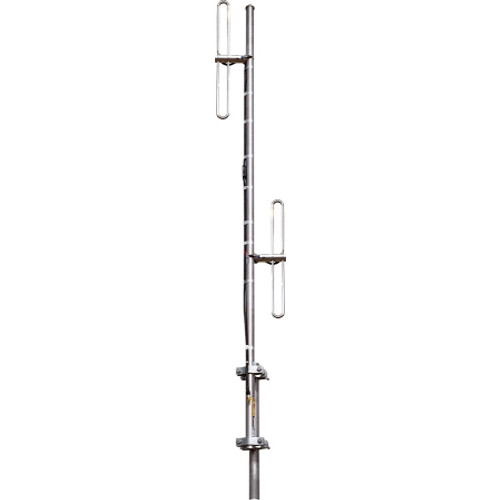

Andrew DB222-B exposed dipole quasi-omnidirectional antenna operates in the frequency range 158 - 166 MHz. This VHF field adjustable dipole antenna has a maximum power input of 500 watts. A harness with N male connection is included along with the DB365-OS pipe mount kit for 1.25 - 3.5 inch OD round members. The omni pattern has a gain of 3 dBd and the offset is 6.0 dBd gain. This antenna meets RoHS 2000/295EC
Andrew Solutions DB222 omni antenna is weather-resistant and can be mounted on the top or side of a tower.
| Specific Frequency | 158-166 MHz |
| Antenna Pattern | Adjustable |
| Gain dBi | 5.1 dBi |
| Gain dBd | 3 dBd |
| Polarization | Vertical |
| Vertical Beamwidth | 36 deg |
| Horizontal Beamwidth | 360 deg |
| Maximum VSWR | 1.5:1 |
| Maximum Power | 500 W |
| Lightning Protection | DC Ground |
| RF Connectors | N Male |
| Connector Placement | Bottom |
| Jumper Included | Yes |
| Type of Hardware Included | Pipe Mount (1.25-3.5 in) |
| Maximum Rated Wind Velocity | 125 mile/h |
| Item Length | 127 in |
| Item Weight | 16 lb |
| Mfg. Warranty | 2 Years |
