ANR 12' Parabolic Shielded Antenna CPR137G Flange
(No reviews yet)
Write a Review
Write a Review
ANR

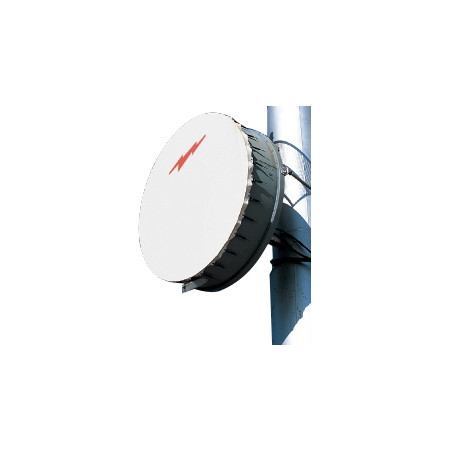

ANR 12' Parabolic Shielded Antenna CPR137G Flange
$26,190.00
- Brand
- ANR
- SKU:
- UHX12-59W-P3M
- Weight:
- 1,609.40 LBS
- Shipping:
- Calculated at Checkout
COMMSCOPE 12 ft Ultra High Performance Parabolic Shielded Antenna, dual-polarized, 5.9257.125 GHz, CPR137G, gray antenna, enhanced white radome with flash, standard packtwo-piece reflector
| Specific Frequency | 5.925-7.125 GHz |
| Diameter | 12 ft |
| Gain, Low | 44.1 dBi |
| Gain, Middle | 44.8 dBi |
| Gain, High | 45.4 dBi |
| Polarization | Dual |
| Minimum Front Back Ratio | 74 dB |
| Return Loss | 28.3 dB |
| XPD | 36 dB |
| Maximum VSWR | 1.08:1 |
| Flange Type | CPR137G |
| Item Weight | 1609.4 lb |
0 Reviews Hide Reviews Show Reviews
CommScope
CommScope 12' Parabolic Shielded Antenna CPR137G Flange
UHX12-59-P3M
$18,440.06
3.7 m | 12 ft Ultra High Performance Parabolic Shielded Antenna, dual-polarized, 5.925–6.425 GHz, CPR137G, gray antenna, enhanced white radome with flash, standard pack—two-piece reflector
ANR
ANR 12' HP Parabolic Shielded Antenna 5.925-7.125 GHz
HP12-59W-P1M
$18,810.00
COMMSCOPE 12 ft High Performance Parabolic Shielded Antenna single polarized 5.925-7.125 GHz. CPR137G. Teglar radome Two-Piece reflector.
ANR
ANR 12' HP Parabolic Shielded Antenna 6.425-7.125 GHz
HP12-65-P3M
$20,910.00
COMMSCOPE 12 ft High Performance Parabolic Shielded Antenna single polarized 6.425-7.125 GHz. CPR137G. Gray antenna.
ANR
ANR 8 ft High Performance Parabolic Shielded Antenna
HP8-107-R3M
$14,320.00
COMMSCOPE 8 ft Parabolic Shielded Antenna single-polarized 10.700?11.700 GHz UBR100 gray antenna white radome with flash.
ANR
ANR 5.0-6.425 CPR137G Flang
252SE
$701.13
ANDREW type Fixed/Tuned connector for EW52 elliptical waveguide. CPR137G flange type. Sub Heading Elliptical Waveguide Connectors Flange Type CPR137G Frequency Range 5.0- 6.425 GHz
